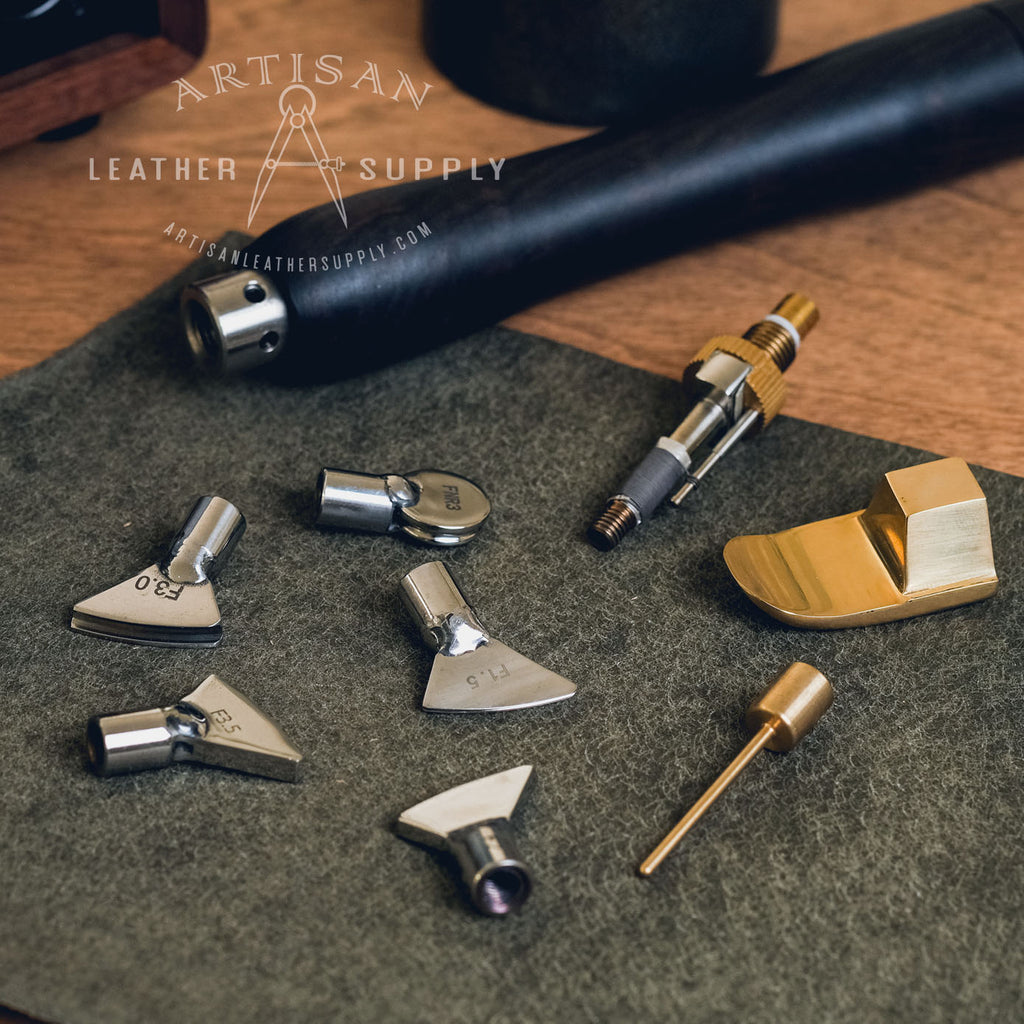

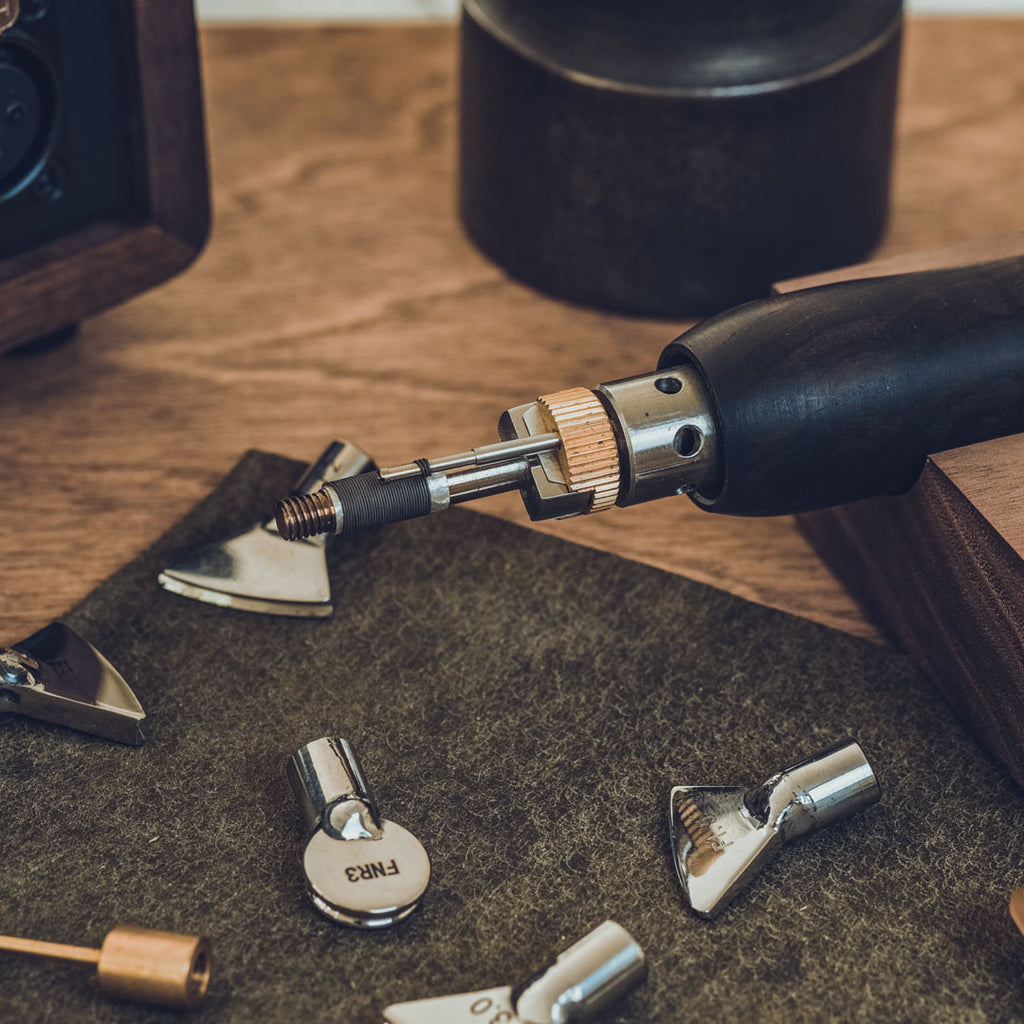

Artisan Leather Supply creaser uses universal shaft that is compatible with all the creasing tips we offer. You can own the complete set of tips at a fraction of the price. Simply connect the universal shaft into the wooden handle and screw on the tip of your choice, turn on the machine and you're ready to go in just a few minutes. Artisan Leather Supply creaser shaft also works with Regad electric creasing machine!
More specialty creasing tips can be found here Specialty Creaser Tips
-------------------------------------------------------------------------------

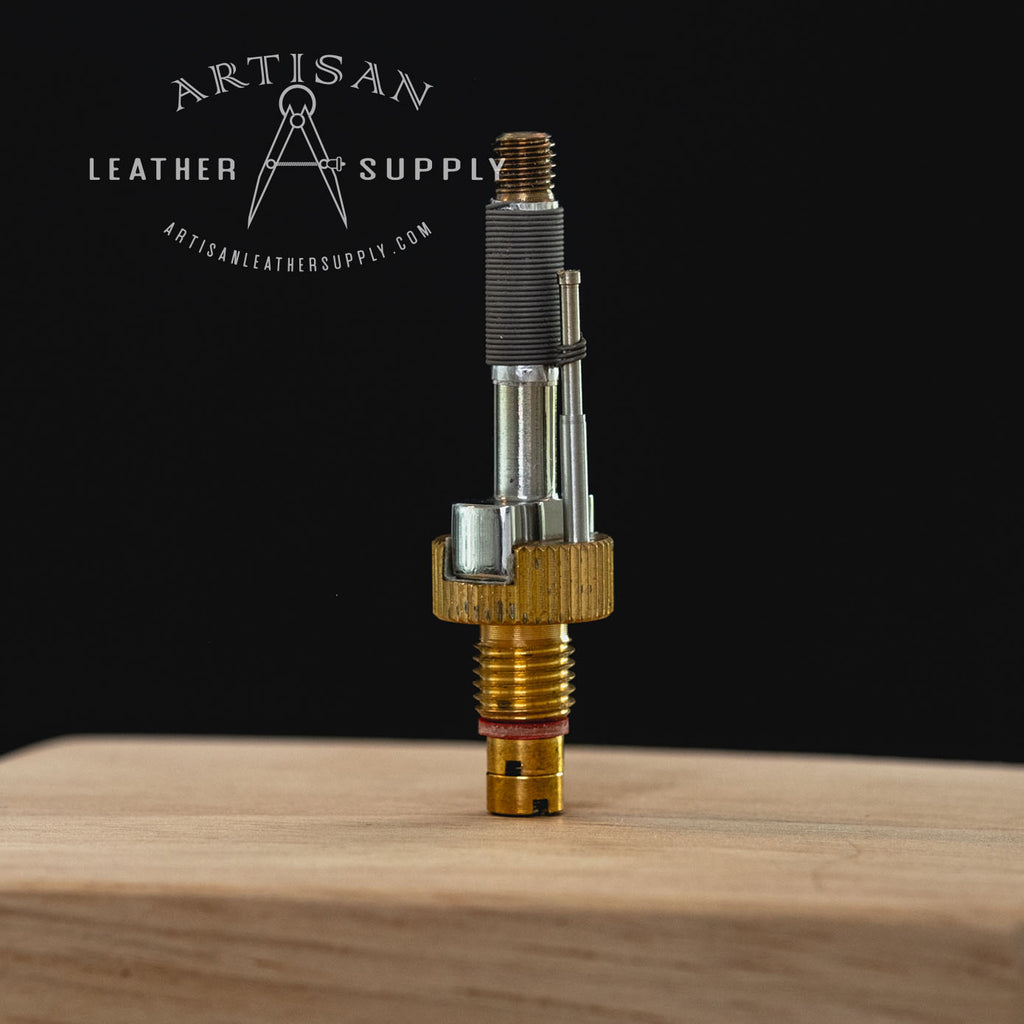

Universal Shaft
Universal shaft is required for all the creaser tips we offer. Interchangeable tips with universal shaft significantly reduce the cost to own multiple tips. (Universal shaft is compatible with Regad handles)
-------------------------------------------------------------------------------
F Tips

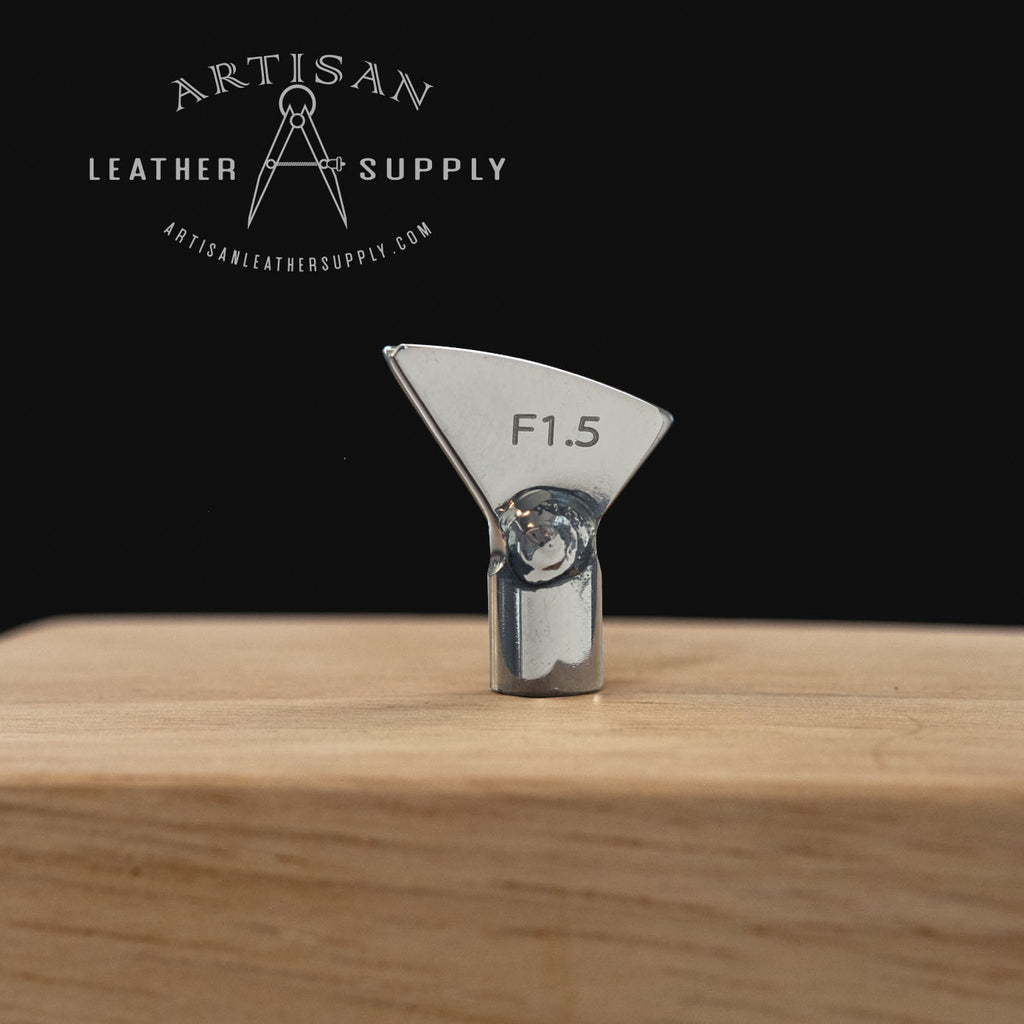

| F1.5 | Crease Distance from edge: 1.00mm | Crease Thickness: 0.5mm |

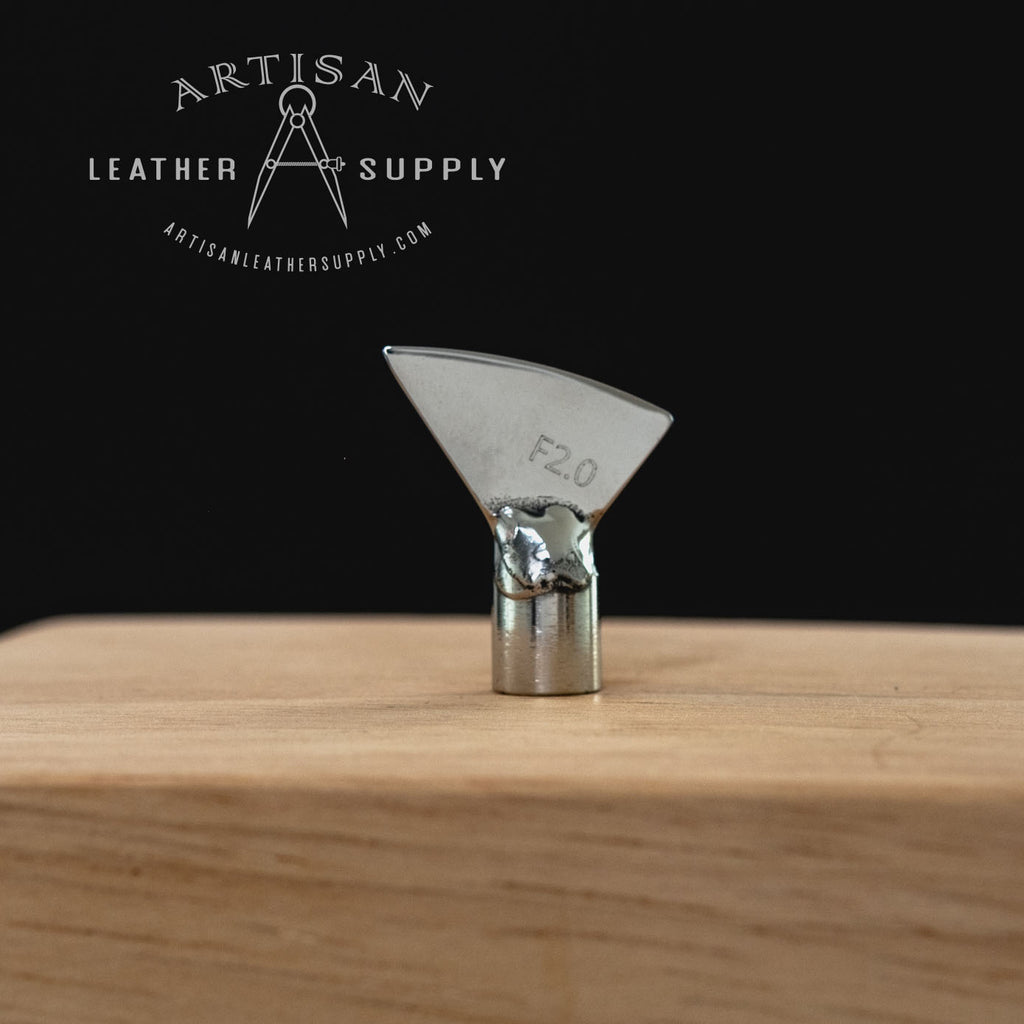

| F2 | Crease Distance from edge: 1.50mm | Crease Thickness: 0.5mm |

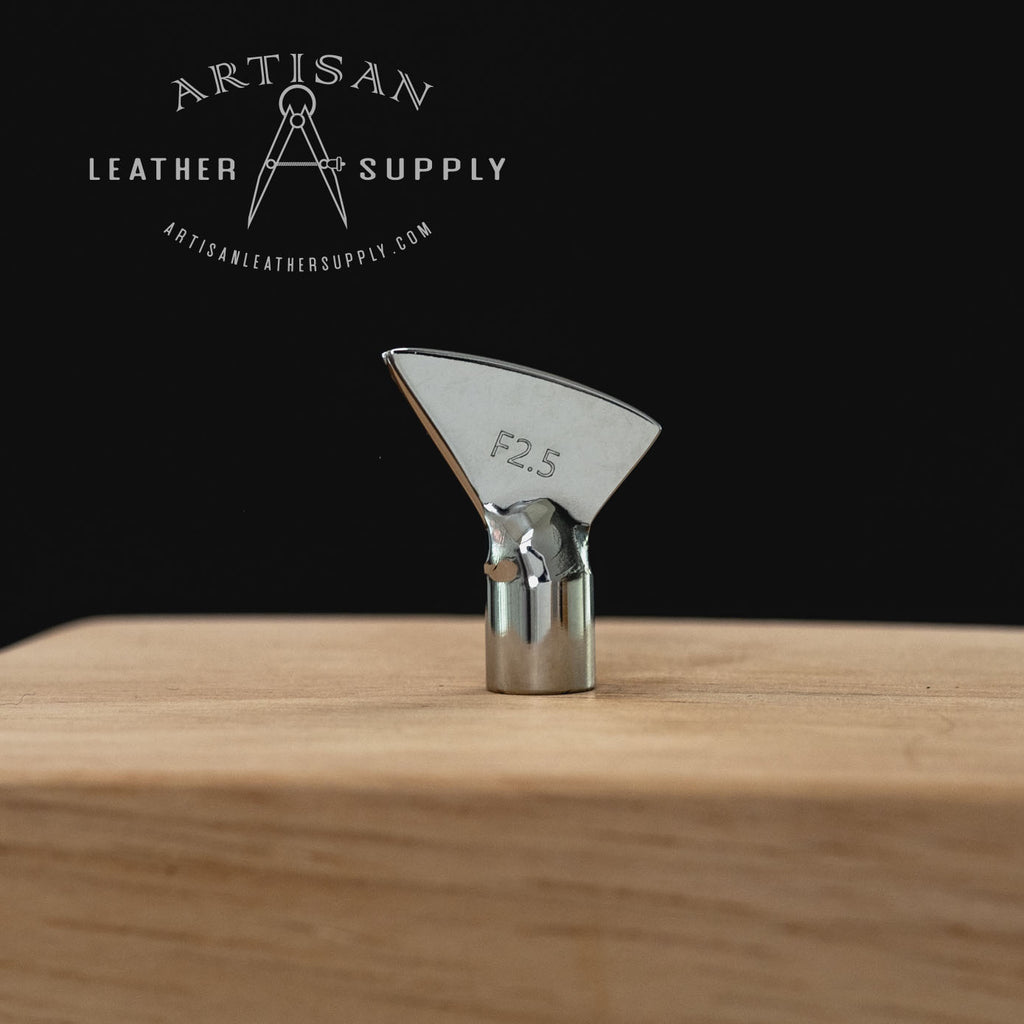

| F2.5 | Crease Distance from edge: 2.00mm | Crease Thickness: 0.5mm |

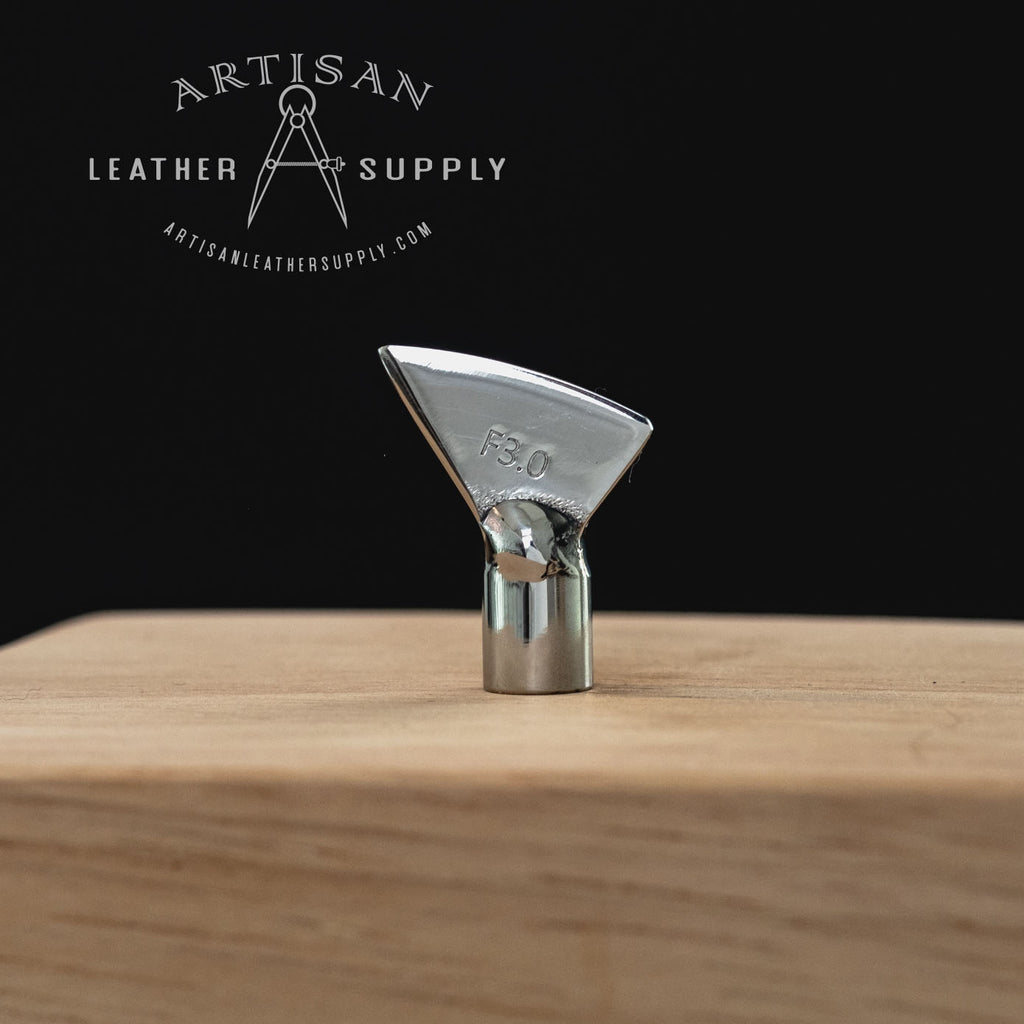

| F3 | Crease Distance from edge: 2.50mm | Crease Thickness: 0.5mm |

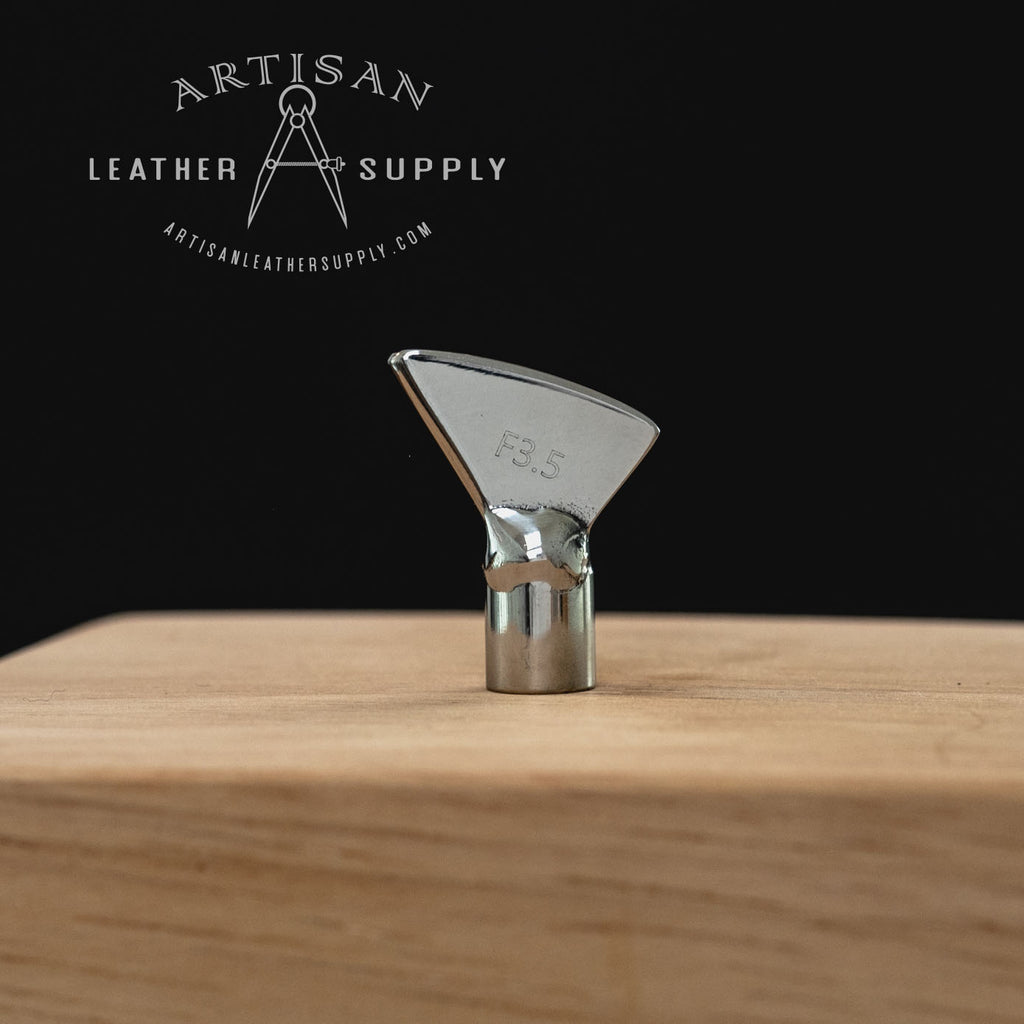

| F3.5 | Crease Distance from edge: 3.00mm | Crease Thickness: 0.5mm |
-------------------------------------------------------------------------------
FN Series (Comparable to F Series, but with 1.0mm rounded crease)
| FN1 | Crease Distance from edge: 0.75mm | Crease Thickness: 1.0mm |
| FN2 | Crease Distance from edge: 1.00mm | Crease Thickness: 1.0mm |

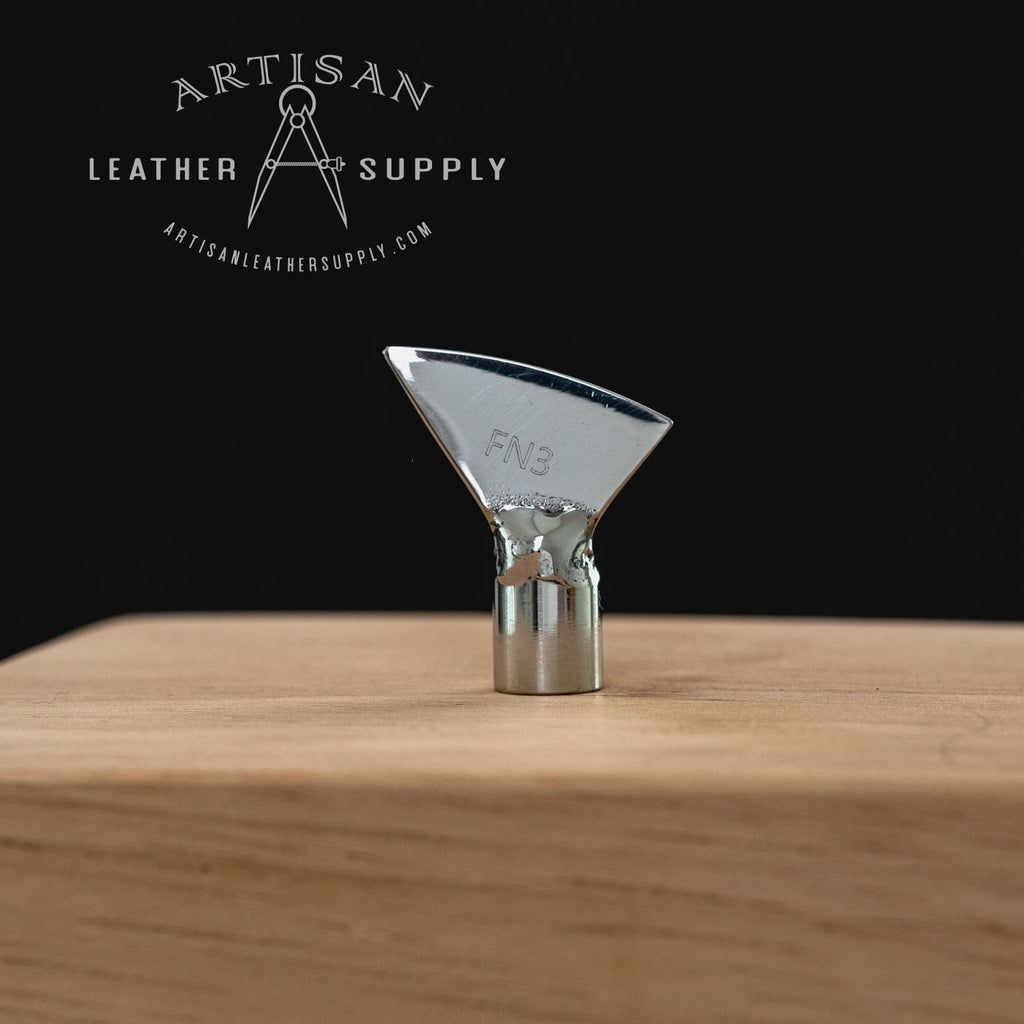

| FN3 | Crease Distance from edge: 1.25mm | Crease Thickness: 1.0mm |
-------------------------------------------------------------------------------
FNR Series (Comparable to FN Series, but with 1.0mm rounded crease)

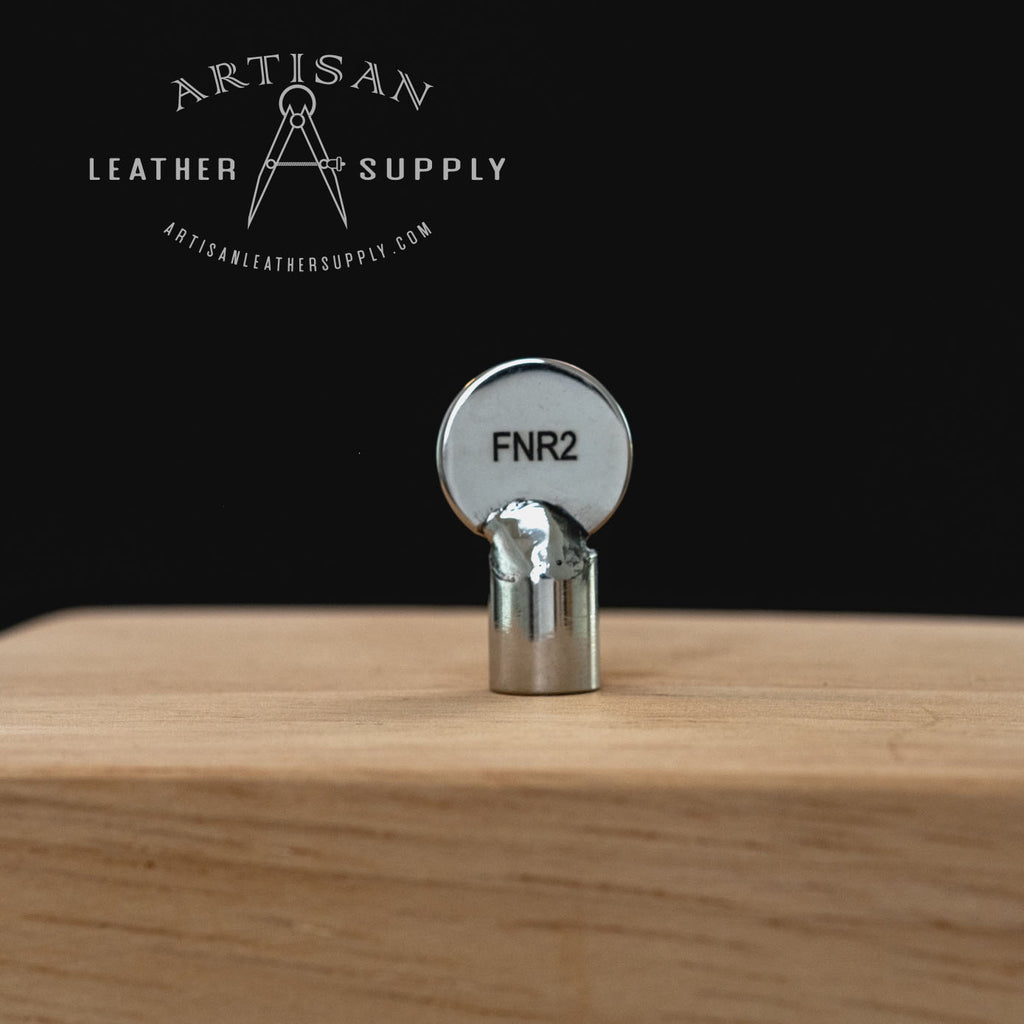

| FNR1 | Crease Distance from edge: 0.75mm | Crease Thickness: 1.0mm |
| FNR2 | Crease Distance from edge: 1.00mm | Crease Thickness: 1.0mm |

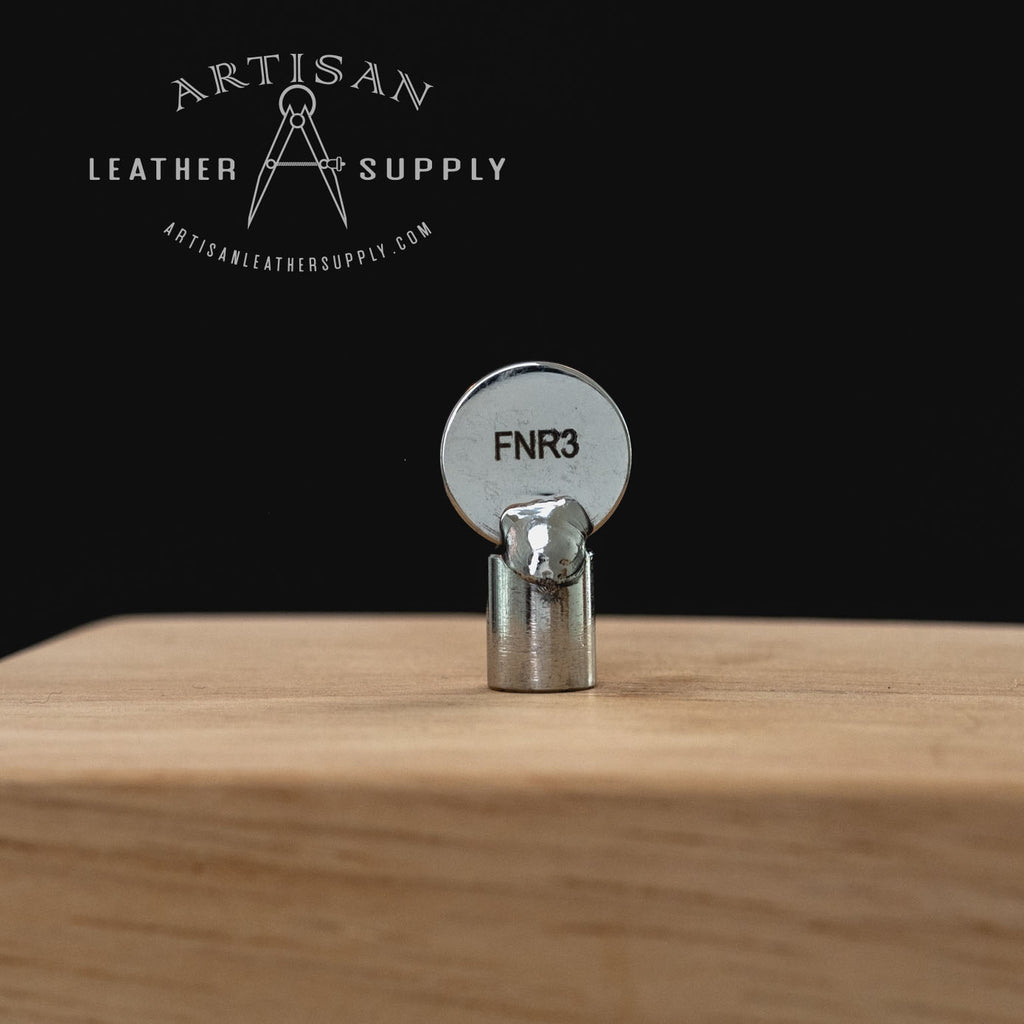

| FNR3 | Crease Distance from edge: 1.25mm | Crease Thickness: 1.0mm |
-------------------------------------------------------------------------------
B Series
- B2: Crease Thickness: 2.0mm
- B3: Crease Thickness: 3.0mm
-------------------------------------------------------------------------------
G Series
The G series Filleteuse Tip create a wide groove on leather as decorative detail or inlay your stitch line.
- G2.0: Crease distance from edge: 2.00mm, Crease Thickness: 1.3mm
- G2.5: Crease distance from edge: 2.50mm, Crease Thickness: 1.3mm
-------------------------------------------------------------------------------
S Series
The S Series Filleteuse Tip can be used in multiple applications. Main purpose is to lay down crease line without limitation by the creaser guide, simply use a metal ruler as your guide when laying down crease line with S tip. S tip is often used like a wax spatula to smooth out the edge during burnishing process or after applying edge paint.

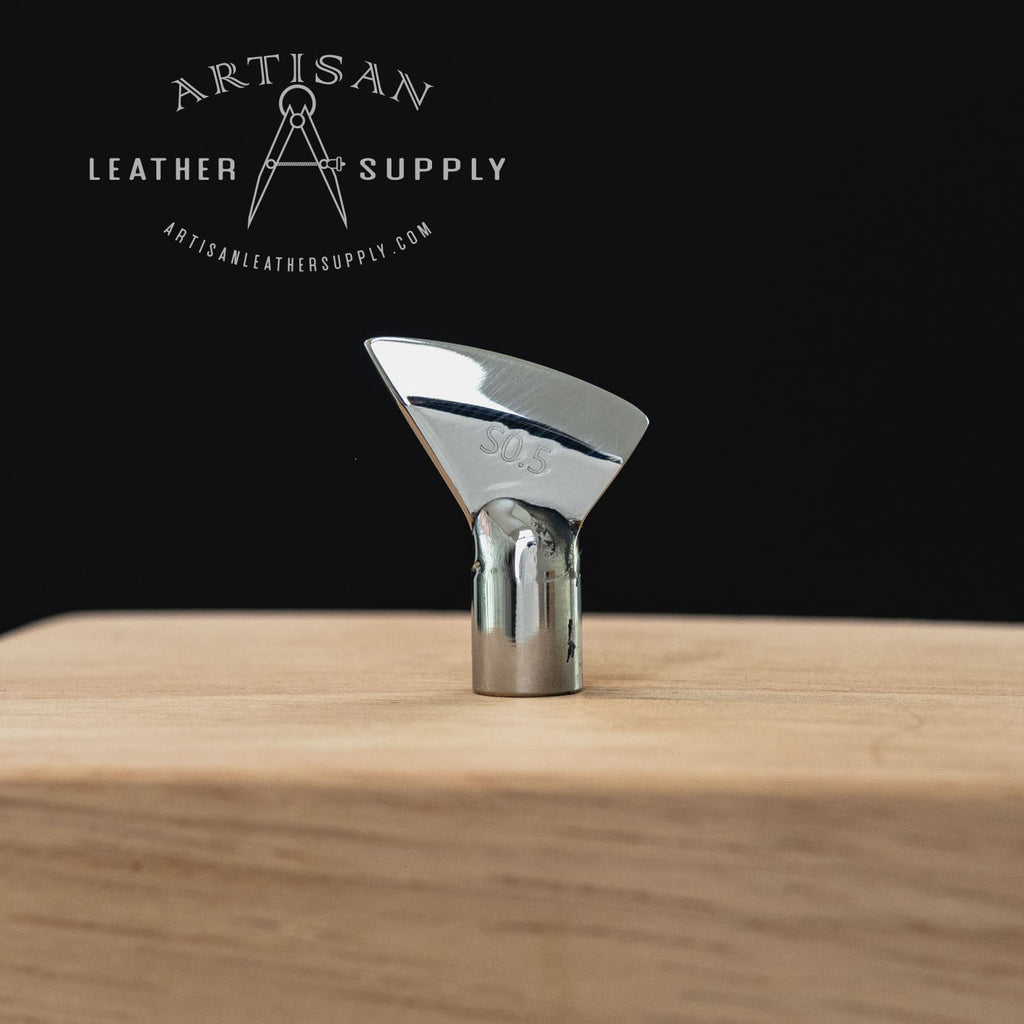

- S0.5 - Crease Thickness: 0.5mm
-------------------------------------------------------------------------------

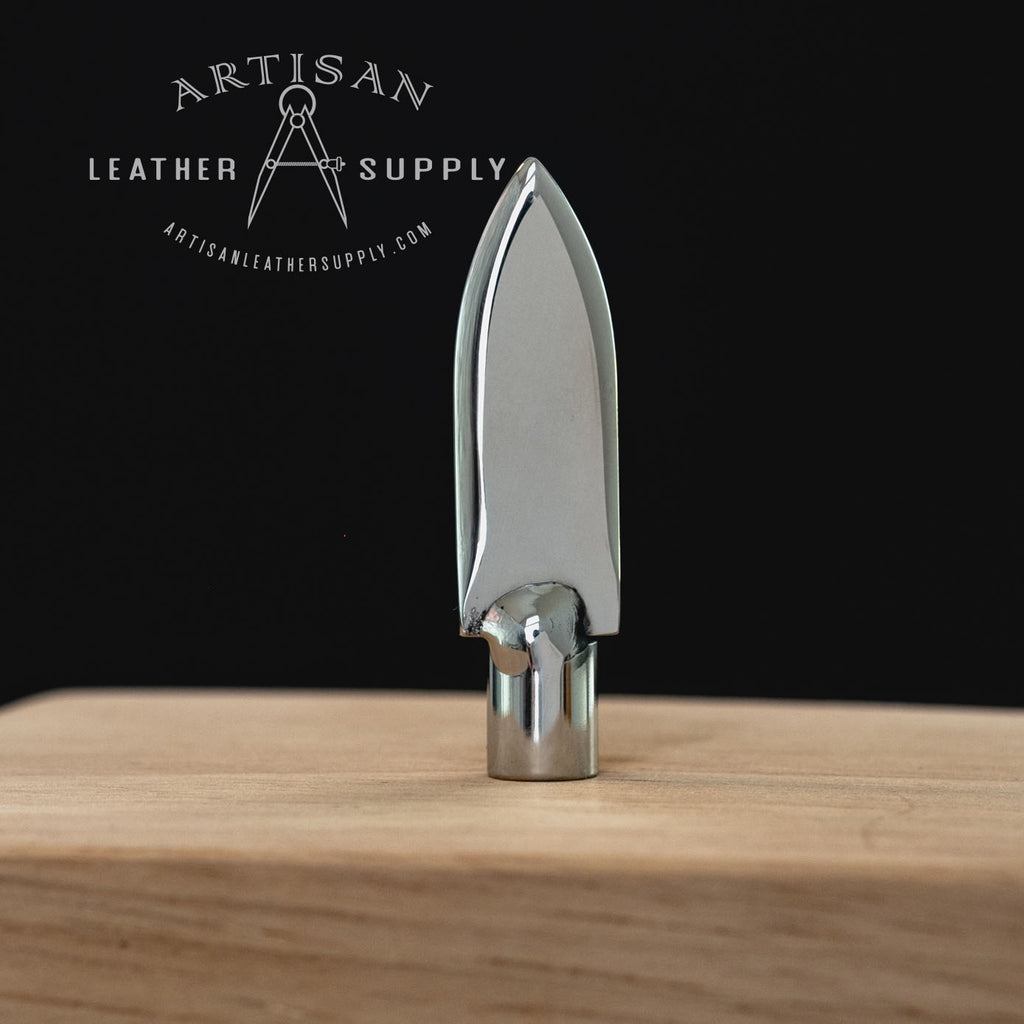

Wax Spatula
The wax spatula is used to finish leather edge with edge paint, wax or paraffin.
-------------------------------------------------------------------------------
Watch Strap Tip
The watch strap burnisher is used to burnish punched holes and smooth hard to reach areas.
